Natural gas liquefaction
Liquefaction rate: full liquefaction
Operating range: 50 - 110%
The specific power consumption of the entire device is 0.35 - 0.45 KW/Nm3
Core technology of LNG liquefaction process in the company
II MRC / IIIMRC
The mixed refrigerant cooling process using two-stage and three-stage systems is currently the best for adjustment and has the lowest energy consumption among MRC processes. There are several successful examples in dozens of LNG plants, suitable for 1-106 MMSCFD.
C3 / MRC
The propane precooling mixed refrigerant refrigeration process is more suitable for purification processes that require the extraction of propane, butane (or LPG). Processing scale: 18-177 MMSCFD.
DMRC
Double mixed working fluid cycle cooling process, processing scale: > 70 MMSCFD.
SEXP、DEXP
Single expander and double expander, nitrogen (or nitrogen + methane) expansion refrigeration processes are particularly suitable for projects that utilize pressure differentials, experience frequent starting and stopping, or involve mixed refrigerants.
Composition of LNG facility units
Preprocessing (Purification) Unit
Raw Gas Measurement Device
Deacidification Gas Device
Dehydration Device
Mercury Removal Device
Heavy Hydrocarbon Removal Device
Liquefaction unit
LNG Liquefaction Device
Refrigerant Circulation Compression Device
Refrigerant Storage and Distribution System
BOG Compression System

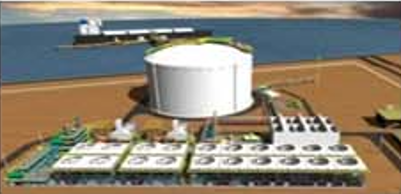

Storage filling unit
LNG storage tank (4x150m³)
LNG quantitative loading
Other by-products storage, transportation, and filling devices, etc.
Auxiliary engineering unit
Desalination Water System
Compressed Air System
Nitrogen Gas System
Heat Transfer Oil Boiler System
Analytical Testing and Inspection
Public Engineering Unit
Ventilation and Heating System
Circulating Water System
Flare System
Fire Protection System
Wastewater Treatment System
